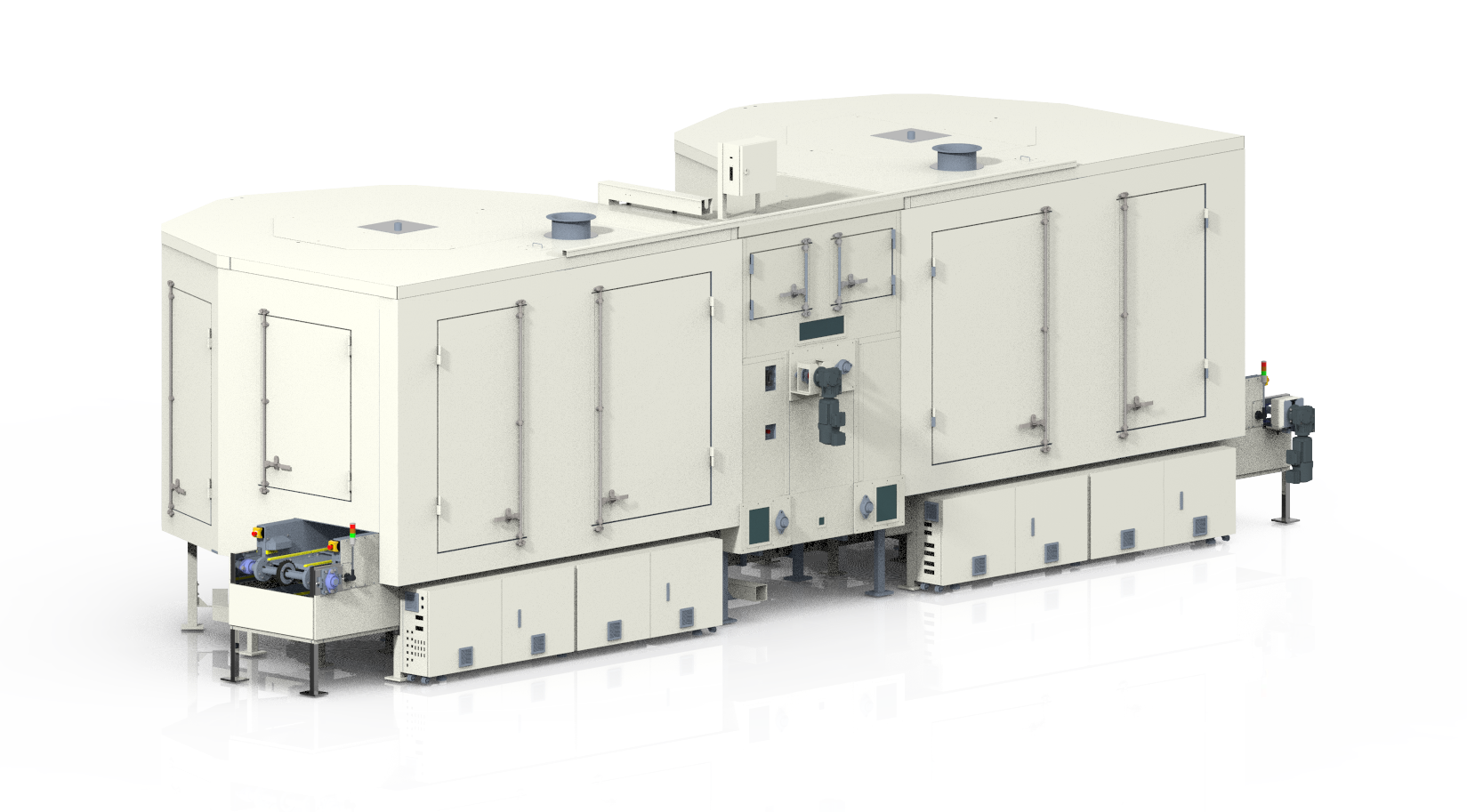

Theros is a Twin Spiral Infra-Red Oven that is capabale of a max temperature of 230°C.
This Oven has enclosed temperature-controlled zones, a compact footprint of (10.5m x 3.7m), and offers scalable options with 7, 9, or 11 heating zones.
It can handle a maximum output of 250 UPM and provides variable belt speeds, including a top speed of 120 FPM.
Our system features modular heater boxes for easy replacements, efficient Infrared heating, precise temperature control, and the capability to reach higher temperatures than conventional ovens, all while remaining energy efficient.
Designed with scalability in mind, it allows varying numbers of zones (7, 9, 11). This flexibility allows more configuration of curing times to suit diverse curing time requirements, providing a highly adaptable solution for your specific needs.
Employs a single belt design to eliminate product transfer issues, resulting in enhanced energy efficiency. Additionally, we have enhanced the take-up design to decrease the frequency of belt cutting, reducing maintenance work.
10.5 (L) x 3.7 (W) x 4.2 (H)
Max 230°C
Customisable
30 - 120 ft/min
Stainless Steel
Max 180UPM (Ø230mm)
7, 9 & 11 Zones
50 – 540 mm W, max 150mm H
480VAC 3 phase 50 Hz
660mm
